PP Corrugated Conduit

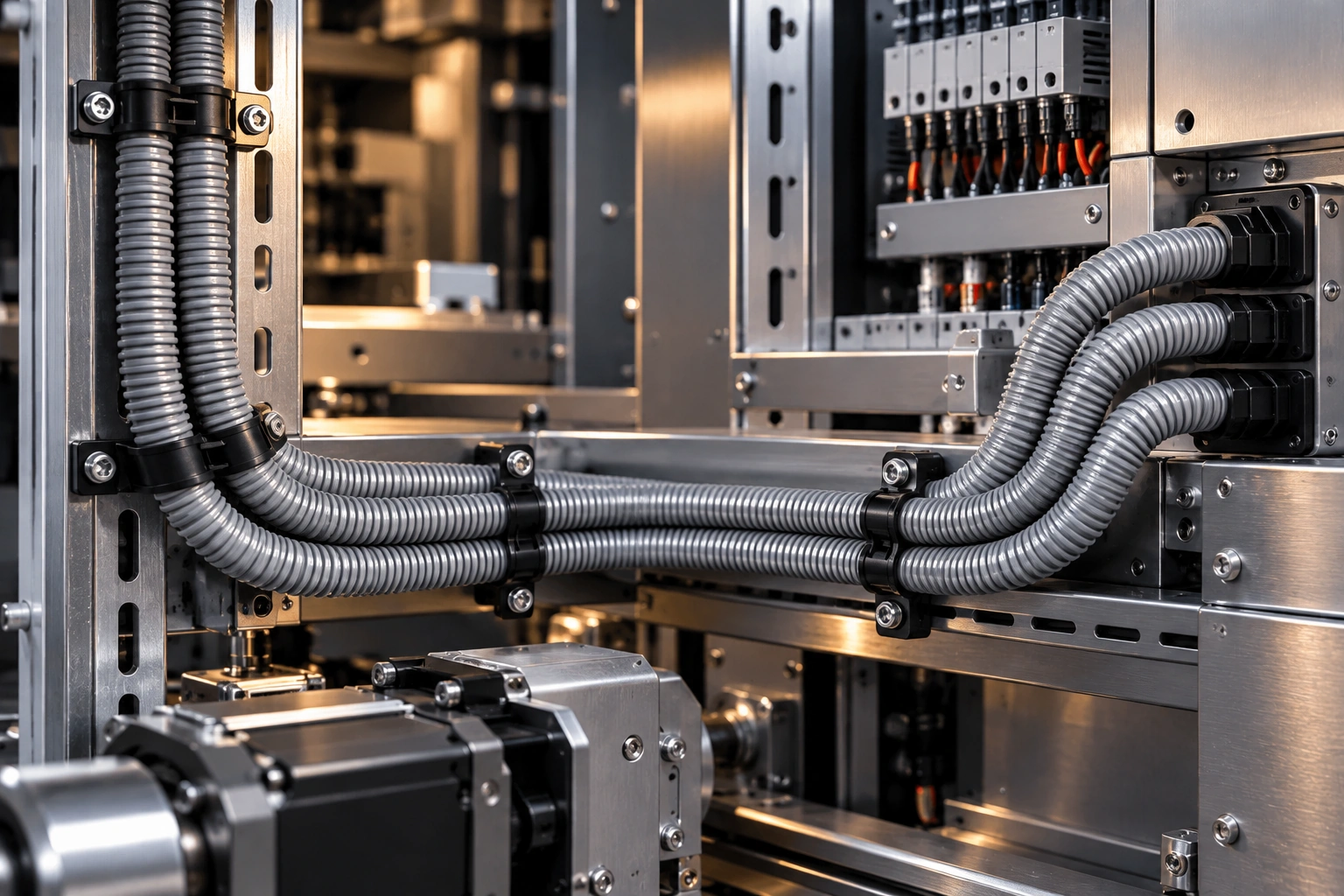

Lightweight and flexible PP corrugated conduit helps protect cable bundles from abrasion and general acidic environments. It is suited to automotive wiring, control cabinets, equipment manufacturing and installation work.
For selection, verify operating temperature, bundle size, bend radius and installation environment.
Material
PP / Polypropylene
Temperature
-30°C to 105°C
Short-term
Up to 125°C

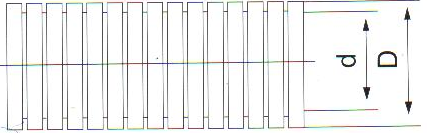

Dimensional drawing
Source callouts are retained. CAD or vector originals are needed for a true high-resolution drawing.
Specifications 01
| Size | Inner diameter (mm) | Outer diameter (mm) | Bend radius (mm) | Packing (m/roll) | Connector |
|---|---|---|---|---|---|
| AD7 | 5±0.5 | 7±0.5 | 15 | 500 | None |
| AD7.5 | 5.5±0.5 | 7.5±0.5 | 15 | 500 | None |
| AD9 | 6±0.5 | 9±0.5 | 15 | 500 | None |
| AD10 | 7±0.5 | 10±0.5 | 25 | 500 | PG7 |
| AD11 | 8±0.5 | 11±0.5 | 25 | 500 | None |
| AD12 | 9±0.5 | 12±0.5 | 25 | 500 | None |
| AD13 | 10±0.5 | 13±0.5 | 30 | 500 | PG9 |
| AD14 | 11±0.5 | 14±0.5 | 30 | 500 | None |
| AD15.8 | 12±0.5 | 15.8±0.5 | 35 | 200 | PG11 |
| AD17 | 13±0.5 | 17±0.5 | 35 | 200 | None |
| AD18.5 | 14.3±0.5 | 18.5±0.5 | 45 | 200 | PG13.5 |
| AD19 | 15±0.5 | 19±0.5 | 45 | 200 | None |
| AD20 | 16±0.5 | 20±0.5 | 50 | 200 | None |
| AD21.2 | 17±0.5 | 21.2±0.5 | 50 | 200 | PG16 |
| AD22 | 18±0.5 | 22±0.5 | 50 | 200 | None |
| AD24 | 19±0.5 | 24±0.5 | 50 | 200 | None |
| AD25 | 20±0.5 | 25±0.5 | 55 | 100 | PG21 |
| AD28.5 | 23±0.5 | 28.5±0.5 | 60 | 100 | PG21 |
| AD30 | 25±0.5 | 30±0.5 | 65 | 100 | None |
| AD32 | 28±0.5 | 32±0.5 | 65 | 50 | None |
| AD34.5 | 29±0.5 | 34.5±0.5 | 65 | 50 | PG29 |
| AD42.5 | 36±0.5 | 42.5±0.5 | 80 | 25 | PG36 |
| AD54.5 | 48±0.5 | 54.5±0.5 | 90 | 25 | PG48 |
Related products
Specifications come from the source workbook. Images are illustrative; final confirmed specifications govern.
