Flame-Retardant Spiral Wrap

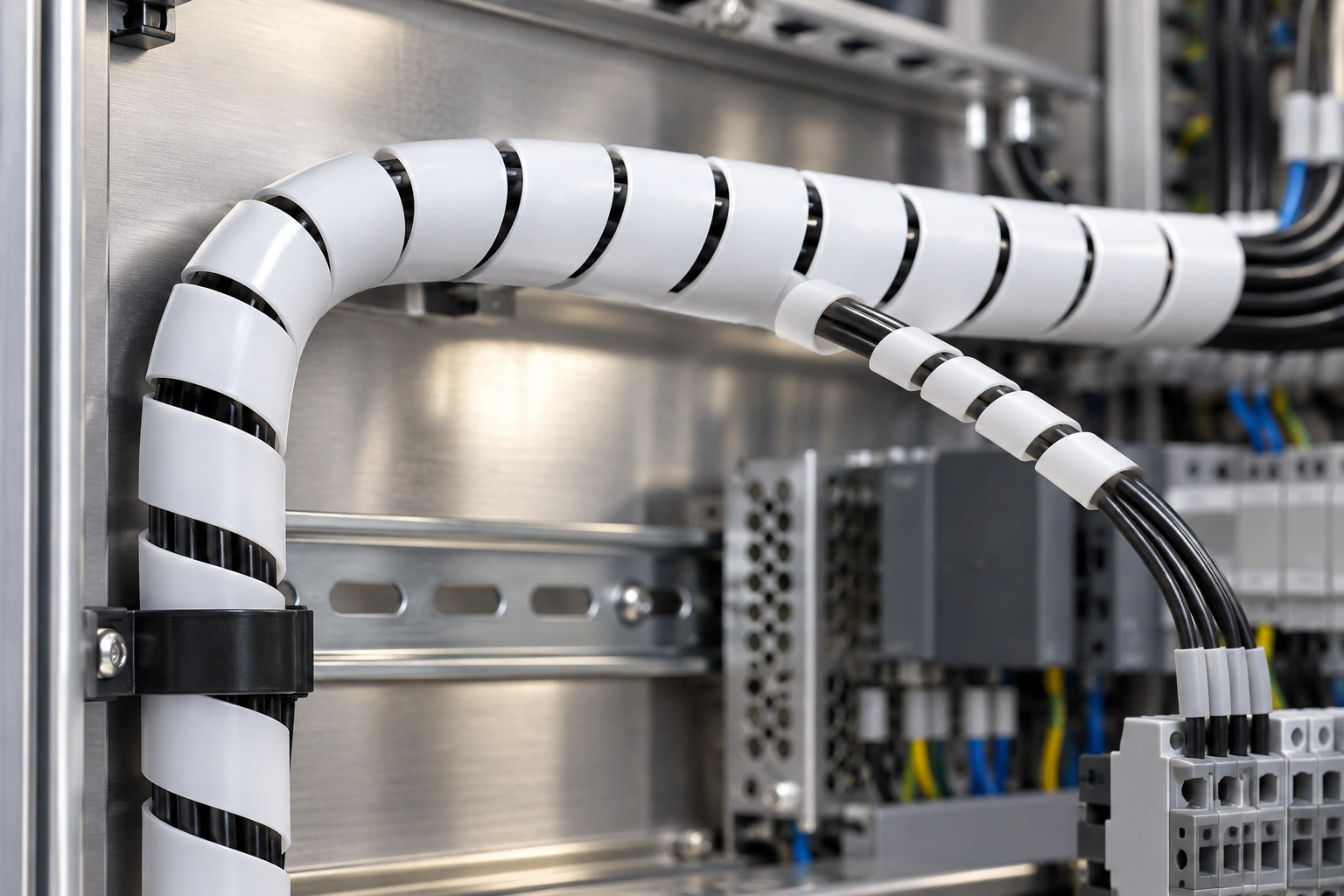

Flame-retardant polypropylene spiral wrap organizes cables and hoses while allowing branches to exit at virtually any point. It is a practical choice for equipment, office and general industrial cable management.
For selection, verify operating temperature, bundle size, bend radius and installation environment.
Material
PP / Polypropylene
Temperature
-30°C to 105°C
Flammability
UL94 V-0

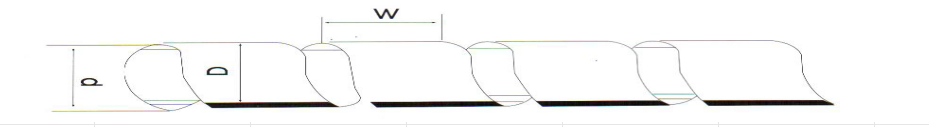

Dimensional drawing
Source callouts are retained. CAD or vector originals are needed for a true high-resolution drawing.
Specifications 01
| Size | Internal （d)MM | Extermal(D)MM | Pitch (mm) | Thickness (mm) | Packing (m/bag) |
|---|---|---|---|---|---|
| ZD-03 | 2±0.5 | 3±0.5 | 5±1 | 0.5±0.1 | 50 |
| ZD-04 | 3±0.5 | 4±0.5 | 6±1 | 0.5±0.1 | 50 |
| ZD-05 | 4±0.6 | 5±0.6 | 7±1 | 0.5±0.1 | 50 |
| ZD-06 | 5±0.5 | 6±0.5 | 8±2 | 0.5±0.1 | 20 |
| ZD-08 | 7±0.5 | 8±0.5 | 10±2 | 0.5±0.1 | 10 |
| ZD-10 | 8.8±0.5 | 10±0.5 | 12±2 | 0.6±0.1 | 10 |
| ZD-12 | 10.4±0.5 | 12±0.5 | 14±2 | 0.8±0.1 | 8 |
| ZD-14 | 12±1 | 14±1 | 16±2 | 1±0.1 | 5 |
| ZD-16 | 14±1 | 16±1 | 18±2 | 1±0.1 | 4 |
| ZD-18 | 16±1 | 18±1 | 20±2 | 1±0.1 | 3 |
| ZD-20 | 18±1 | 20±1 | 22±2 | 1±0.1 | 3 |
| ZD-25 | 22±1 | 25±1 | 27±2 | 1.2±0.2 | 3 |
| ZD-30 | 27±1 | 30±1 | 32±2 | 1.5±0.2 | 3 |
Related products
Specifications come from the source workbook. Images are illustrative; final confirmed specifications govern.
