PE Spiral Wrap

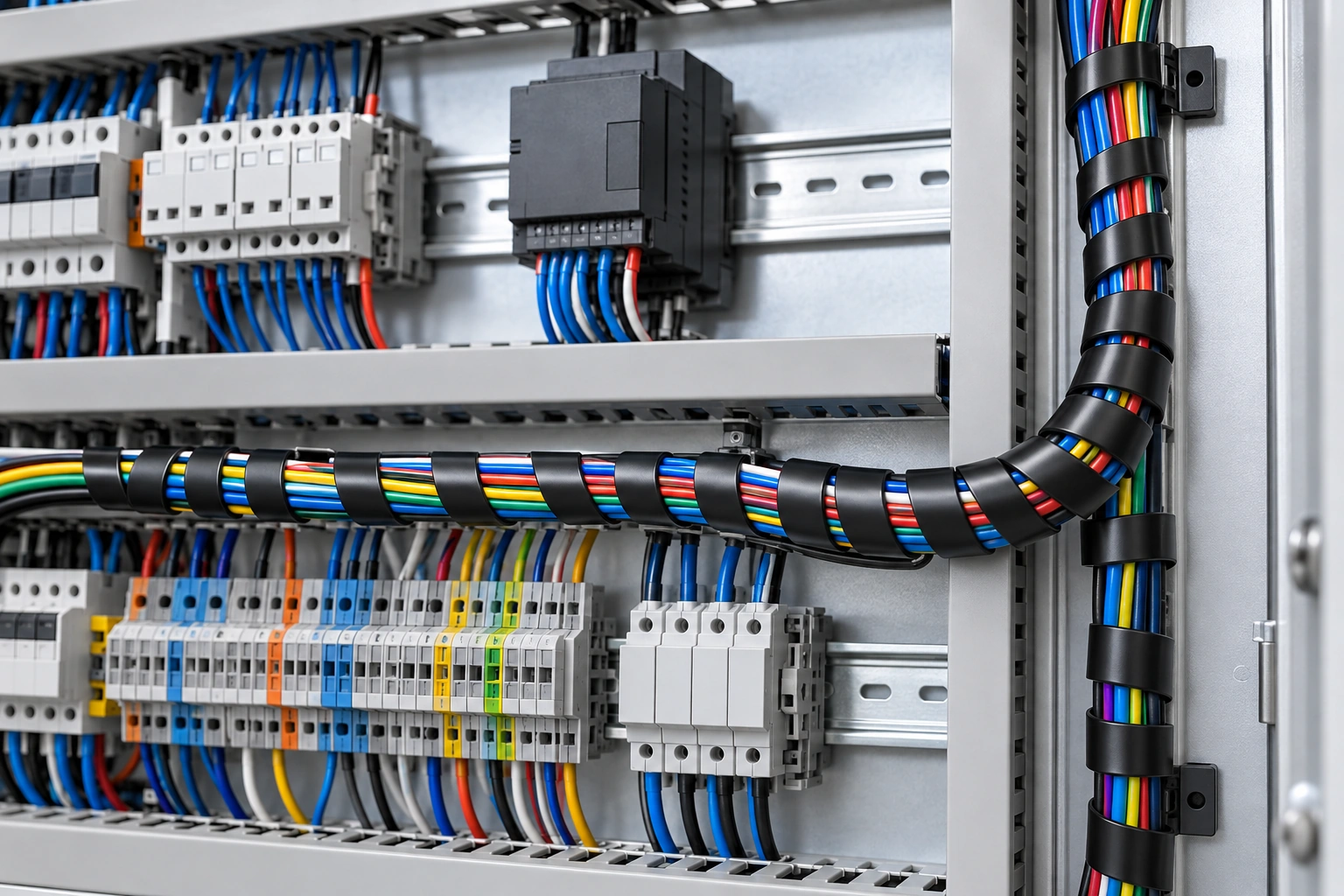

PE spiral wrap quickly bundles and protects wires, improves routing appearance and allows cables to branch out along the run. It is well suited to control cabinets, office equipment and general harness organization.
For selection, verify operating temperature, bundle size, bend radius and installation environment.
Material
PE / Polyethylene
Temperature
-40°C to 80°C
Option
Flame-retardant grade available

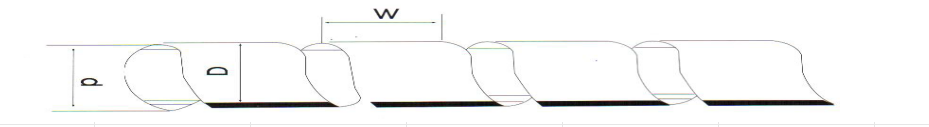

Dimensional drawing
Source callouts are retained. CAD or vector originals are needed for a true high-resolution drawing.
Specifications 01
| Size | Inner diameter d (mm) | Outer diameter D (mm) | Pitch (mm) | Thickness (mm) | Packing (m/bag) |
|---|---|---|---|---|---|
| ZD-03 | 2±0.5 | 3±0.5 | 5±1 | 0.5±0.1 | 50 |
| ZD-04 | 3±0.5 | 4±0.5 | 6±1 | 0.5±0.1 | 50 |
| ZD-05 | 4±0.6 | 5±0.6 | 7±1 | 0.5±0.1 | 50 |
| ZD-06 | 5±0.5 | 6±0.5 | 8±2 | 0.5±0.1 | 20 |
| ZD-08 | 7±0.5 | 8±0.5 | 10±2 | 0.5±0.1 | 12 |
| ZD-10 | 8.8±0.5 | 10±0.5 | 12±2 | 0.6±0.1 | 10 |
| ZD-12 | 10.5±0.5 | 12±0.5 | 14±2 | 0.75±0.1 | 8 |
| ZD-14 | 12±1 | 14±1 | 16±2 | 1±0.1 | 5 |
| ZD-16 | 14±1 | 16±1 | 18±2 | 1±0.1 | 4 |
| ZD-18 | 16±1 | 18±1 | 20±2 | 1±0.1 | 3 |
| ZD-20 | 18±1 | 20±1 | 22±2 | 1±0.1 | 3 |
| ZD-25 | 22±1 | 25±1 | 27±2 | 1.2±0.2 | 3 |
| ZD-30 | 27±1 | 30±1 | 32±2 | 1.5±0.2 | 3 |
