PRODUCT OVERVIEW
Waterproof Corrugated Conduit Gland

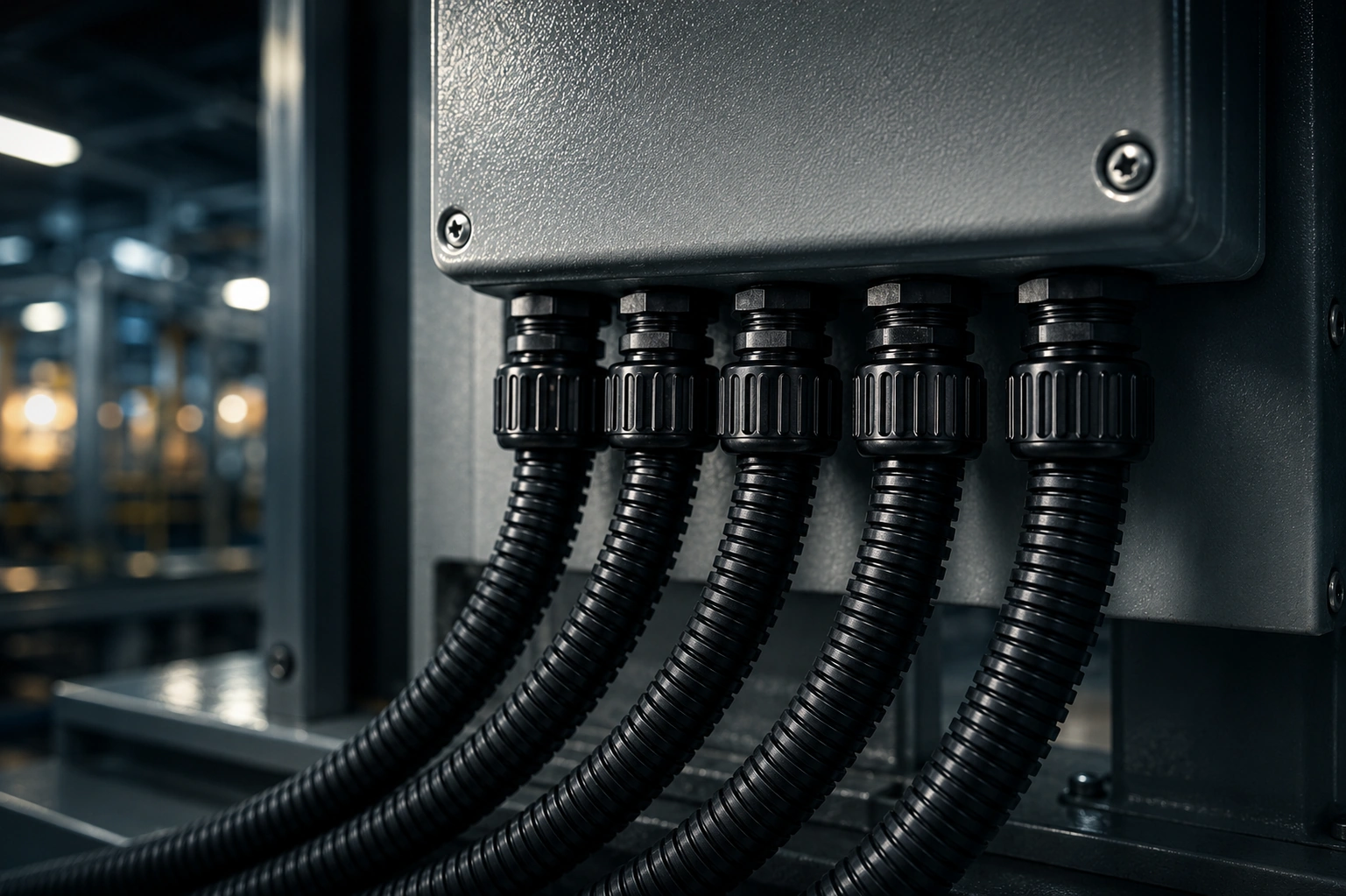

This waterproof conduit gland combines a PA66 body with EPDM sealing parts to provide retention, sealing and dust protection at cable entries. It is suitable for control boxes, machinery enclosures and outdoor connections.
For selection, verify operating temperature, bundle size, bend radius and installation environment.
Body
PA66
Seal
EPDM
Protection
IP68-10

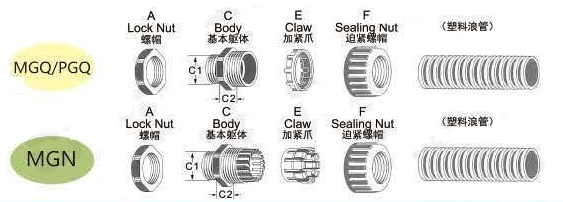

Dimensional drawing
Source callouts are retained. CAD or vector originals are needed for a true high-resolution drawing.
Specifications 01
| Thread | Size | Conduit type | Conduit size | Thread OD | Thread length | Packing |
|---|---|---|---|---|---|---|
| PG7 | PG7-AD10 | AD10 | 1/4" conduit | 12.5 | 8 | 50 |
| PG9 | PG9-AD10 | AD10 | 1/4" conduit | 15.2 | 8 | 50 |
| PG11 | PG11-AD13 | AD13 | 5/16" conduit | 18.6 | 10 | 50 |
| PG13.5 | PG13-AD15.8 | AD15.8 | 3/8" conduit | 20.4 | 10 | 50 |
| PG13-AD18.5 | AD18.5 | 3/8" conduit | 20.4 | 10 | 50 | |
| PG16 | PG16-AD15.8 | AD15.8 | 3/8" conduit | 22.5 | 11 | 50 |
| PG16-AD18.5 | AD18.5 | 3/8" conduit | 22.5 | 11 | 50 | |
| PG16-AD21.2 | AD21.2 | 1/2" conduit | 22.5 | 11 | 50 | |
| PG21 | PG21-AD21.2 | AD21.2 | 1/2" conduit | 28.3 | 12 | 50 |
| PG21-AD25 | AD25 | 3/4" conduit | 28.3 | 12 | 50 | |
| PG21-AD28.5 | AD28.5 | 3/4" conduit | 28.3 | 12 | 50 | |
| PG29 | PG29-AD34.5 | AD34.5 | 1" conduit | 37 | 13 | 50 |
| PG36 | PG36-AD42.5 | AD42.5 | 11/4" conduit | 47 | 13 | 50 |
| PG42 | PG42-AD42.5 | AD42.5 | 11/4" conduit | 54 | 16 | 50 |
| PG48 | PG48-AD54.5 | AD54.5 | 2" conduit | 59.3 | 16 | 50 |
Related products
Specifications come from the source workbook. Images are illustrative; final confirmed specifications govern.
